Nicalon™ Silicon Carbide Fiber
Nicalon™ is a Silicon Carbide (SiC) fiber that possesses high strength, corrosion and heat resistances. These fibers bring improvements to ceramics, polymer, and metal matrix composites (CMC, PMC, MMC). Nicalon™ has been used and tested in the Aerospace Industry. New innovations continue to be investigated by other industries as well.
Nicalon™ Product Lineup
Nicalon™
Excellent Tensile Strength & Good Thermal Properties
- Qualified product on multiple production programs. The process is well characterized and manufactured to specifications and process control documents.
- Options for both High Volume Resistivity (HVR) and Low Volume Resistivity (LVR) are also available.
Hi-Nicalon™
Great strength and modulus properties & thermal stability.
- Under production and currently being qualified by US customers.
- The process is fully characterized and the fiber is manufactured to internal specification.
Hi-Nicalon™ Type S
Stoichiometric beta-silicon carbide fiber.
- < 0.5 wt% oxygen content.
- Excellent thermal stability
- Gaining maturity in CMC applications
Fiber Comparisons
| Tex (g/km) | Sizing Range (wt%) | Oxygen Content (wt%) | Tensile Strength (GPa) | Modulus (GPa) | Volume Resistivity (Ω⋅cm) | Density (g/cm3) | |
|---|---|---|---|---|---|---|---|
| CG Nicalon™ | 200-220 | 0.5-2.0 | 10.5 - 13.5 | ≥2.60 | ≥188 | 1 x 103 - 1 x 104 | 2.50 - 2.65 |
| HVR Nicalon™ | 10.0 - 15.0 | ≥2.40 | ≥174 | 1 x 106 - 1 x 107 | 2.25 - 2.40 | ||
| LVR Nicalon™ | 10.0 - 15.0 | ≥2.44 | ≥180 | Lot Specific | 2.40 - 2.55 | ||
| Hi-Nicalon™ | 190-210 | ≤1.2 | ≥2.50 | ≥250 | n/a | ≥2.65 | |
| Hi-Nicalon™ Type S | ≤1.0 | ≥2.55 | ≥340 | n/a | ≥2.91 |
Forms

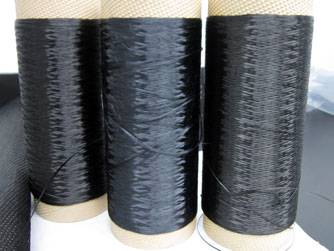

Tow
- Standard 1800 Denier
- Low Bend Radius
- Filament Winding
- Specialty Braiding
- Thin Filament Pyrometry

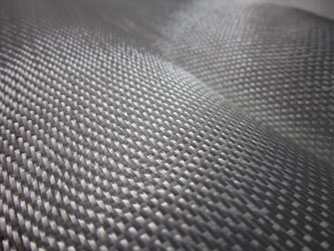

Cloth
- Pliable
- Plain, 5HS & 8HS Standard Weave
- Resin Impregnation
- Pattern Layup
- Other Specialty Weave Options

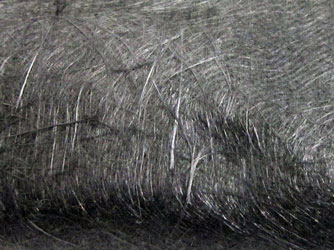

Felt / Chopped
- Filters
- Sacrificial Ply (Machined)
- Wear Parts
- Various Chop Length Options
- RTM Strengthening
Additional Specs
Standard Surface Treatment Options
| Sizing Designation | Type | Intended Use | Fibers |
|---|---|---|---|
| M | Polyvinyl Acetate | CMC, MMC | CG NL |
| PVA | Polyvinyl Alcohol | CMC, MMC | CG NL, Hi-NL, & Hi-NL Type S |
| P | Modified Epoxy | PMC | CG NL, HVR NL |
| DCC-2 | Proprietary | PMC | CG NL, HVR NL |
| Other | Various Blends | TBD | TBD |
How Can We Help?
Our experienced team is happy to assist you! Please contact us for more information.
